Item Sales Info
Part Number: A35X7 / Vendor ID Number: 81 / Custom:

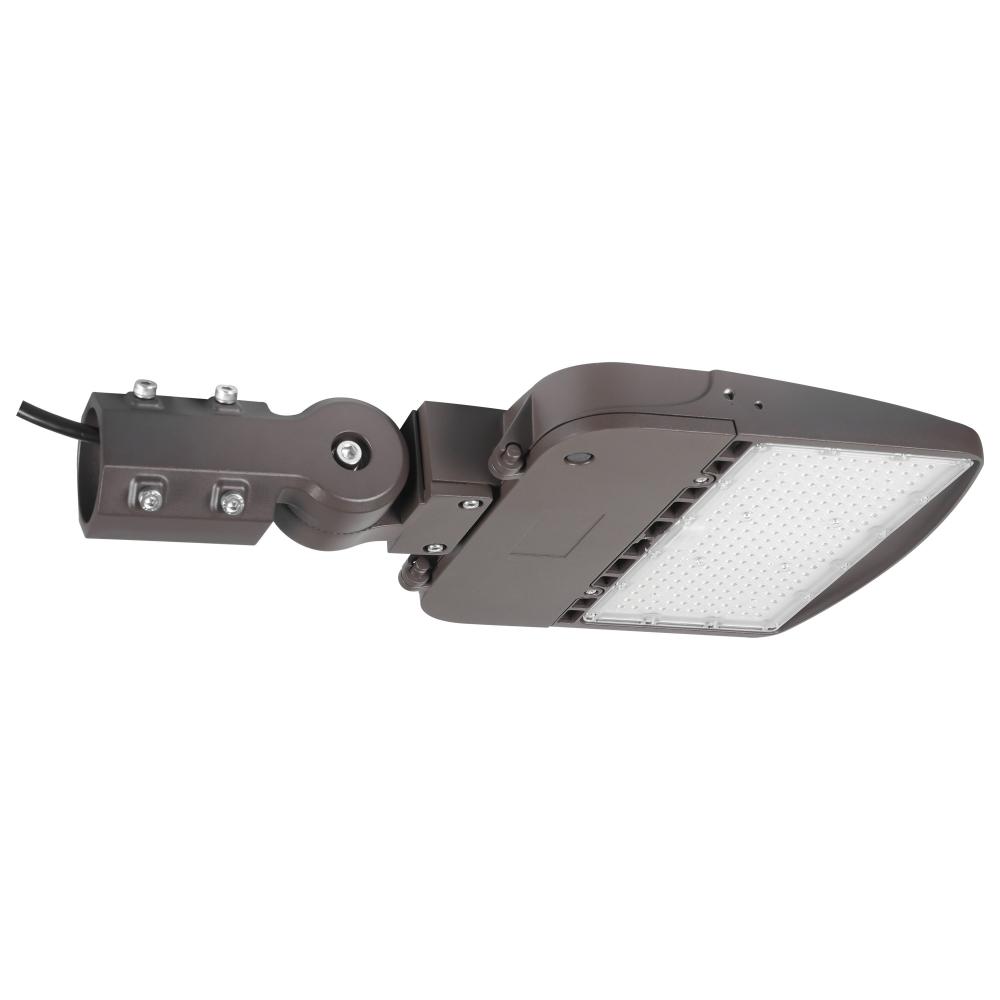

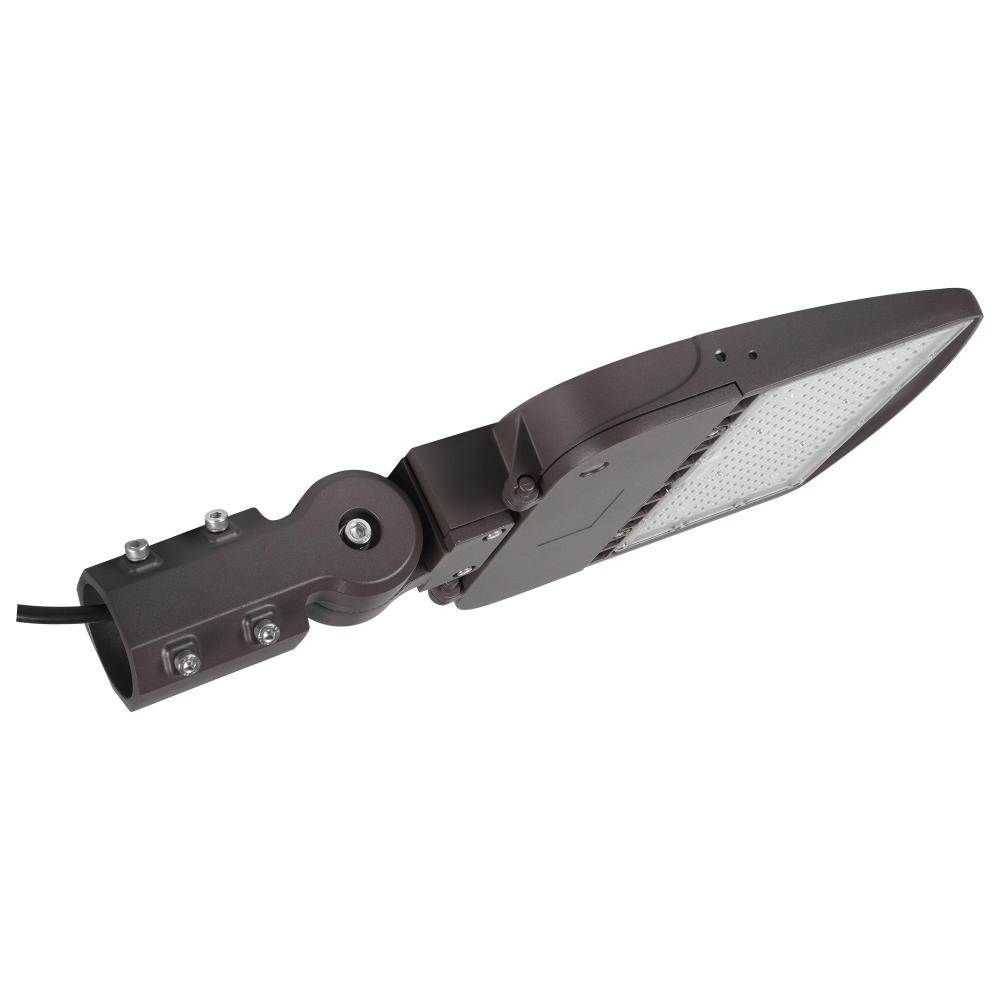

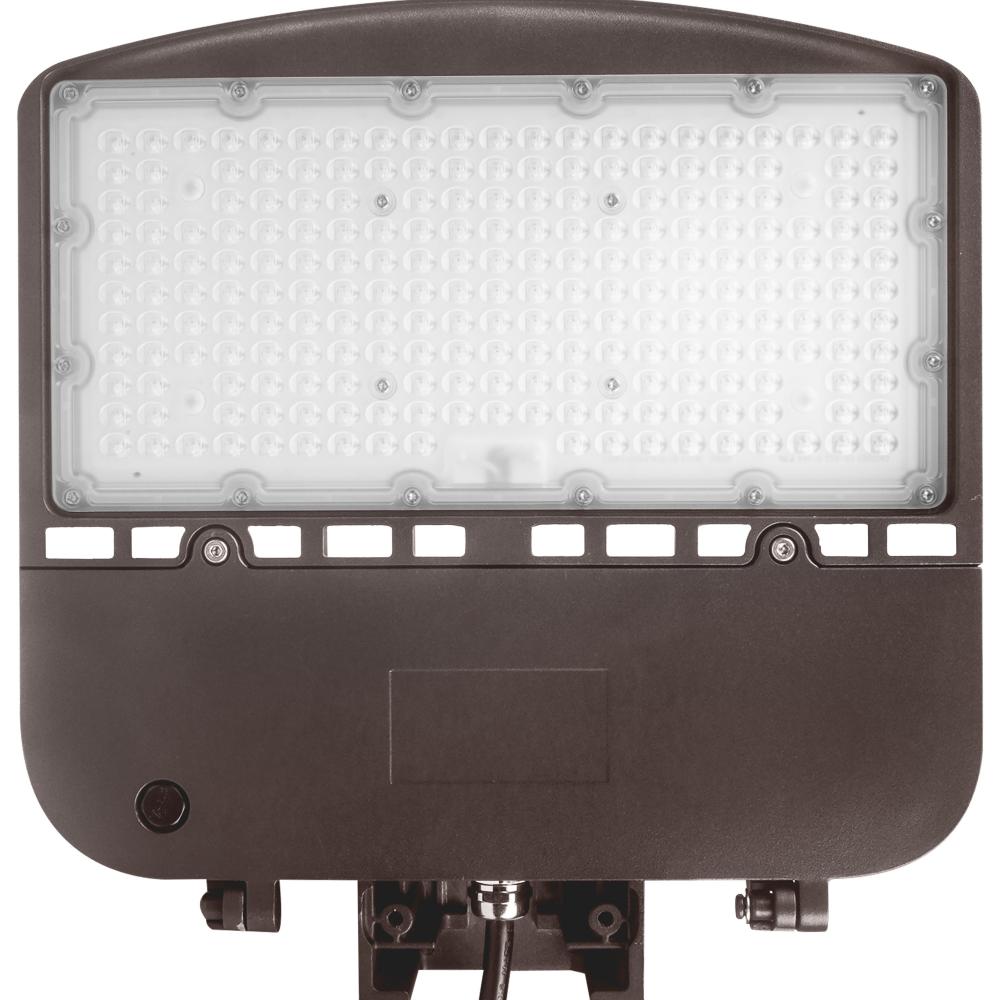

LED Area Light Type III; 150W; Bronze Finish; 5000K; 277-480V

LED Area Light Type III; 150W; Bronze Finish; 5000K; 277-480V

411
60
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.11"
Width: 12.40"
Finish
Bronze
Product Overview
LED Area Light Type III; 150W; Bronze Finish; 5000K; 277-480V
Product Availability
    Purchase now and we'll ship when it's available
Bulbs: (1) x Integrated
0 Bulbs Found
No Bulbs Found! Refine search criteria above.
Technical Details
Details
Category:
Landscape Ltg.
Subcategory:
Path Lights
Finish:
Bronze /vendors/vendorImages bronze.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Outdoor
Sub Category:
Area Light
Style:
Utility
Additional Info:
Powder Coated
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5.71
Each Length:
23.23
Each Width:
14.37
Length:
20.71
Lumens:
19736L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.542-0.313A
ANSI Base:
Integrated
BAA Compliant:
No
B_U_G_Rating:
B3-U2-G3
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dark Sky Rated:
No
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
Each Cube:
1.1031
Each Quantity:
1
Efficacy:
131.57 LPW
FCC Compliant:
Yes
Feature 1:
Maintenance free - no bulb to change
Feature 2:
Die-cast Aluminum Body
Feature 3:
UV Stabilized powder coasted bronze finish
Feature 4:
Slip-fitter mount included
Feature 5:
IP65 Rated
Feature 6:
Multiple mounting options available
Feature 7:
Add-on sensors available
Finish Family:
Bronze
HID Equiv:
320W
Impact Rating (IK):
IK10
Incandescent Equivalent:
450W
Includes:
2-3/8 Inch Slip-fitter Mount
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-863 150W LED Area Light Type III provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built usin
Material:
Die-Cast Aluminum
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Area Light Type III provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built using die cast a
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
150W LED AREA LIGHT TYPE III
Specification Notes:
Type III Light Distribution
Temperature (CCT):
5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
8.08
